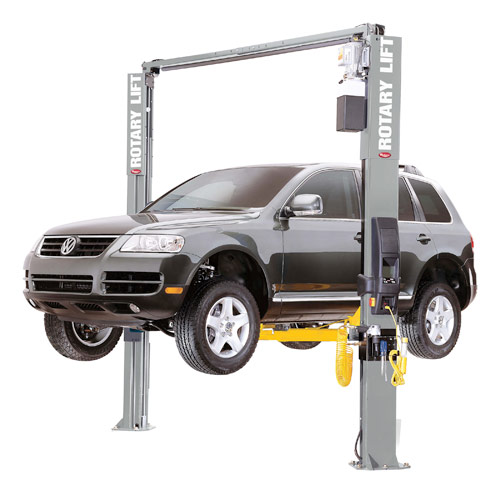

Rotary SPO 40 2 Post Lift

The SPO Electro-Hydraulic 2-Post Lifts are ideal for use within a workshop due to their electro-hydraulic design which provides for low noise and effective work. Each lifting column features a maintenance-free high pressure cylinder. The lift is base frame free thus eliminating the risk of trip hazards on the workshop floor and reduces installation cost.

An upper limit bar prevents vehicles being lifted too high and is most effective when high vehicles are involved to prevent damage. The lift is equipped with non load bearing cables ensuring even lifting and lowering. In emergencies and to ensure maximum safety mechanical safety latches are integrated on both columns to enable the lift carriage to be locked into position.

The lift carriage bearings are made of self-lubricating and absolutely maintenance-free Tivar 1000 polyethylene. Two characteristics that help reduce operating expenses considerably.

The long design of the lift carriage increases the fixing stability and reduces the load on the plain bearings. The supporting arms are automatically locked into position during the lifting operation. Once the lift has been completely lowered, this interlock is automatically released. The very narrow spacing between the locking positions and a manual unlocking function enhance the ease of use.

Description

The SPO Electro-Hydraulic 2-Post Lifts are ideal for use within a workshop due to their electro-hydraulic design which provides for low noise and effective work. Each lifting column features a maintenance-free high pressure cylinder. The lift is base frame free thus eliminating the risk of trip hazards on the workshop floor and reduces installation cost.

An upper limit bar prevents vehicles being lifted too high and is most effective when high vehicles are involved to prevent damage. The lift is equipped with non load bearing cables ensuring even lifting and lowering. In emergencies and to ensure maximum safety mechanical safety latches are integrated on both columns to enable the lift carriage to be locked into position.

The lift carriage bearings are made of self-lubricating and absolutely maintenance-free Tivar 1000 polyethylene. Two characteristics that help reduce operating expenses considerably.

The long design of the lift carriage increases the fixing stability and reduces the load on the plain bearings. The supporting arms are automatically locked into position during the lifting operation. Once the lift has been completely lowered, this interlock is automatically released. The very narrow spacing between the locking positions and a manual unlocking function enhance the ease of use.

Additional information

Vehicle
Condition

M
4000 kg
Stroke
1982 mm
Overall height
3780 mm
Overall width
3496 mm
Drive through clearance
2590 mm
Switch off level
3455 mm
Support bracket length on front min
851 mm
Support bracket length on front max
1394 mm
Support bracket length on rear min
851 mm
Support bracket length on rear max
1394 mm
Rotary plate height min With min extension
110mm
Rotary plate height max With max extension
178 mm
Column spacing, interior dimension
2908 mm
Cylinder height
3632 mm
(at max. stroke)
3785 mm
Motor performance
3 kW
Electrical connection (3 phases)
230/400V 50 Hz
Lifting time
51 s.
Required ceiling height
3800 mm
