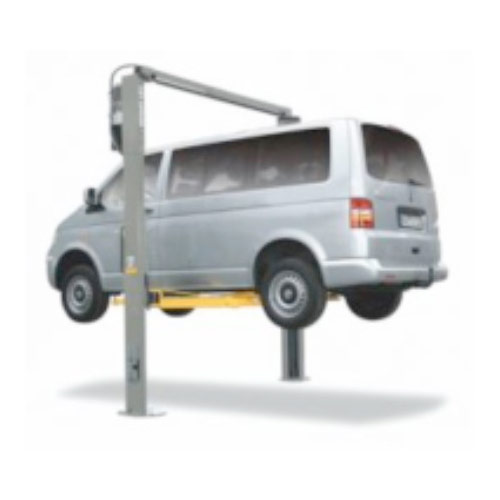

Rotary SPOA 3T 2 Post Lift

The new SPOA3T 2 Post Lifts offer maximum drive-thru clearance with minimum external dimensions. The asymmetrical design of the posts and supporting arms also provides a spacious pick up area - The lift can be entered from either side.

The rear supporting arms can swivel through 180°. This substantially increases the pick up flexibility, allowing vehicles with a short or long wheel base to be lifted without difficulty. The lift carriage bearings are made of self lubricating and absolutely maintenance free Tivear® 1000 polyethylene. Two characteristics that help reduce operating expenses considerably.

The supporting arms are automatically locked in position during the lifting operation. Once the lift has been completely lowered, this interlock is automatically released. The very narrow spacing between the locking positions and the manual unlocking function enhance the ease of use.

The modern, asymmetrical post design provides a generous drive-thru clearance of 2,350mm, so even large vehicles can be easily accommodated.

Description

The new SPOA3T 2 Post Lifts offer maximum drive-thru clearance with minimum external dimensions. The asymmetrical design of the posts and supporting arms also provides a spacious pick up area – The lift can be entered from either side.

The rear supporting arms can swivel through 180°. This substantially increases the pick up flexibility, allowing vehicles with a short or long wheel base to be lifted without difficulty. The lift carriage bearings are made of self lubricating and absolutely maintenance free Tivear® 1000 polyethylene. Two characteristics that help reduce operating expenses considerably.

The supporting arms are automatically locked in position during the lifting operation. Once the lift has been completely lowered, this interlock is automatically released. The very narrow spacing between the locking positions and the manual unlocking function enhance the ease of use.

The modern, asymmetrical post design provides a generous drive-thru clearance of 2,350mm, so even large vehicles can be easily accommodated.

Additional information

Vehicle
Condition

Capacity:
3000kg
Stroke:
1972mm
Overall Height:
3785 mm
EH1
3865 mm
EH2
4170 mm
Overall Width:
3000 mm
Drive Through Clearance:
2336 mm
Switch off Level:
3455 mm
EH1
3760 mm
EH2
4065 mm
Support bracket length on the front min
536 mm
Support bracket length on the front max
1105 mm
Support bracket length on the rear min
837 mm
Support bracket length on the rear max
1475 mm
Rotary Plate Height (min)
94 mm
Rotary Plate Height (max)
169 mm
Column Spacing, interior dimension
2560 mm
Cylinder height at max stroke*
3785 mm
Motor Performance
4,0KW
Electrical connection (3 phases)
400 V 50 Hz
Lifting Time:
31 sec.
Required Ceiling Height
3800 mm
EH1
3920 mm
EH2
4230 mm
