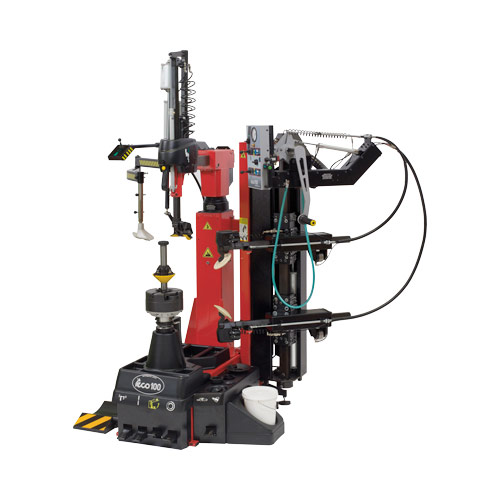

Teco 100 Universal Leverless Tyre Changer

The "Leverless" super-automatic universal tyre changer TECO100, new in its innovative and ergonomic design, has been specifically conceived for professional and super-intensive purposes and it is suitable to handle oversized and heavy car and light commercial vehicle wheels from 12" to 30". The adoption of many patented and innovative technical solutions make this machine able to handle all the tires currently available on the international markets:
  1. BEAD BREAKING SYSTEM - Lateral bead breaking system with patented rollers which performs a precise and controlled penetration under the tyre edge and a double disengagement system for free working area access: rotation of the complete bead breaking assembly and independent withdrawal of the upper arm. The roller synchronization eliminates the necessity of mirrors or cameras to check the different working steps, while the above mentioned withdrawal system is equipped with a patented pneumo-mechanical memory allowing to perform in series the bead breaking activity on wheels having the same diameter;
  2. SELF-CENTERING SPINDLE - Patented system equipped with removable central locking shaft able to lock tyres from 12" to 30" without adapters and adjustments. Standard supplied with pneumatic wheel locking system (Automatic Lock);
  3. HELICOIDAL TILTING SYSTEM - This patented helicoidal movement, vertical and successively lateral, avoids any possibility of damaging rim or tyre during the different working phases;
  4. AUTOMATIC LEVERLESS TOOL HEAD - Patented automatic system equipped with plastic protections. Thanks to an easy, quick and completely automatic demounting procedure, no effort is required from the operator side without any risk of rim scratches or tire damages. The head movement is controlled by an on-purpose joystick.
In 2008 TECO100 has been awarded WDK / DEKRA homologation. This approval, requested by German market, confirms TECO product suitability to properly manage RUN-FLAT (reinforced side-walls) and UHP (ultra-low profiled) tyres. Also available in USA version with Moto inverter. The "Leverless" super-automatic universal tyre changer TECO100, new in its innovative and ergonomic design, has been specifically conceived for professional and super-intensive purposes.

Description

The “Leverless” super-automatic universal tyre changer TECO100, new in its innovative and ergonomic design, has been specifically conceived for professional and super-intensive purposes and it is suitable to handle oversized and heavy car and light commercial vehicle wheels from 12″ to 30″.

The adoption of many patented and innovative technical solutions make this machine able to handle all the tires currently available on the international markets:

  1. BEAD BREAKING SYSTEM – Lateral bead breaking system with patented rollers which performs a precise and controlled penetration under the tyre edge and a double disengagement system for free working area access: rotation of the complete bead breaking assembly and independent withdrawal of the upper arm. The roller synchronization eliminates the necessity of mirrors or cameras to check the different working steps, while the above mentioned withdrawal system is equipped with a patented pneumo-mechanical memory allowing to perform in series the bead breaking activity on wheels having the same diameter;
  2. SELF-CENTERING SPINDLE – Patented system equipped with removable central locking shaft able to lock tyres from 12″ to 30″ without adapters and adjustments. Standard supplied with pneumatic wheel locking system (Automatic Lock);
  3. HELICOIDAL TILTING SYSTEM – This patented helicoidal movement, vertical and successively lateral, avoids any possibility of damaging rim or tyre during the different working phases;
  4. AUTOMATIC LEVERLESS TOOL HEAD – Patented automatic system equipped with plastic protections. Thanks to an easy, quick and completely automatic demounting procedure, no effort is required from the operator side without any risk of rim scratches or tire damages. The head movement is controlled by an on-purpose joystick.

In 2008 TECO100 has been awarded WDK / DEKRA homologation. This approval, requested by German market, confirms TECO product suitability to properly manage RUN-FLAT (reinforced side-walls) and UHP (ultra-low profiled) tyres. Also available in USA version with Moto inverter.

The “Leverless” super-automatic universal tyre changer TECO100, new in its innovative and ergonomic design, has been specifically conceived for professional and super-intensive purposes.

Additional information

Condition

Clamping capacity
12"-30"
Max wheel diameter
1150 mm (45")
Max wheel width
380 mm (15")
Spindle rotation speed
6-12 rpm
Bead breaker cylinder force
800 kgf (1765 lbf)
Working pressure
10 bar (145 psi)
3-phase electric motor
0,8-1,1 kw (1,1-1,5 hp)
1-phase electric motor
0,75 kw (1,0 hp)
Noise level
< 70 ± 3 db(a)
Net weight
490 kg (1080 lbs)
IPL 2
Pneumatic wheel lift controlled by an on-purpose pedal having working capacity of 85 Kg (standard supplied);
KIT TI
Tubeless inflating device with variable diameter setting;
KIT REVERSE RIMS
Flange for reverse rims;
KIT VAN
Fixing accessories for light commercial vehicle rims;
KIT BLIND RIMS
Fixing flange for close central hole rims.
