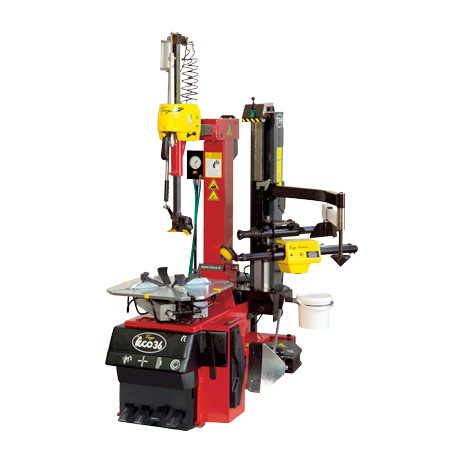

Teco 36 Top Automatic Leverless Tyre Changer

The automatic "Leverless" tyre changer TECO 36 TOP, new in its innovative and unique design, has been specifically conceived for professional and super-intensive purposes and it is suitable to handle oversized and heavy car and light commercial vehicle wheels from 10" to 25". The adoption of the new automatic patented device TPH, coupled with the optional accessories UMA and US TPH, makes this machine also ideal to work on the most difficult motorbike wheels.

Part of the new “Top Line” product range, clearly identified by the yellow head plastic cover, TECO 36 TOP adds to the traditional, reliable and economically convenient turntable clamping system, the vertical post equipped with the automatic patented “Lever-Less” Teco tool head:

  1. VERTICAL POST - Pneumatic control of the working arm, triple regulation system to take off clearances, reinforced vertical post, rollers to improve movement fluidity and horizontal arm double locking system;
  2. AUTOMATIC LEVERLESS TOOL HEAD - Patented automatic system equipped with plastic protections. Thanks to an easy, quick and completely automatic demounting procedure, no effort is required from the operator side without any risk of rim scratches or tyre damages. The head movement is controlled by an on-purpose joystick;
  3. AUTOMATIC AUXILIARY DEVICE TPH - Standard supplied patented automatic help arm, positioned on the right of the vertical post, ideal to operate on particularly tough or low profiled tyres such as Run-Flat. This new device is equipped with a patented bead-lifter tool, performing an automatic tool positioning system, which allows the “Leverless” head to handle whatever tyres present on the international market.
Available also in t.i. version complete with the tubeless inflating device and in USA version with Moto inverter.

Description

The automatic “Leverless” tyre changer TECO 36 TOP, new in its innovative and unique design, has been specifically conceived for professional and super-intensive purposes and it is suitable to handle oversized and heavy car and light commercial vehicle wheels from 10″ to 25″. The adoption of the new automatic patented device TPH, coupled with the optional accessories UMA and US TPH, makes this machine also ideal to work on the most difficult motorbike wheels.

Part of the new “Top Line” product range, clearly identified by the yellow head plastic cover, TECO 36 TOP adds to the traditional, reliable and economically convenient turntable clamping system, the vertical post equipped with the automatic patented “Lever-Less” Teco tool head:

  1. VERTICAL POST – Pneumatic control of the working arm, triple regulation system to take off clearances, reinforced vertical post, rollers to improve movement fluidity and horizontal arm double locking system;
  2. AUTOMATIC LEVERLESS TOOL HEAD – Patented automatic system equipped with plastic protections. Thanks to an easy, quick and completely automatic demounting procedure, no effort is required from the operator side without any risk of rim scratches or tyre damages. The head movement is controlled by an on-purpose joystick;
  3. AUTOMATIC AUXILIARY DEVICE TPH – Standard supplied patented automatic help arm, positioned on the right of the vertical post, ideal to operate on particularly tough or low profiled tyres such as Run-Flat. This new device is equipped with a patented bead-lifter tool, performing an automatic tool positioning system, which allows the “Leverless” head to handle whatever tyres present on the international market.

Available also in t.i. version complete with the tubeless inflating device and in USA version with Moto inverter.

Additional information

Vehicle
Condition

Clamping capacity
10"-25"
External clamping
10"-22"
Internal clamping
13"-25"
Max wheel diameter
1060 mm (42")
Max wheel width
370 mm (14,5")
Bead breaker cylinder force
2900 kgf (6395 lbf)
Working pressure
8-10 bar (116-145 psi)
3-phase electric motor
0,8-1,1 kw (1,1-1,5 hp)
1-phase electric motor
0,75 kw (1,0 hp)
Noise level
< 70 ± 3 db(a)
Net weight
380 kg (840 lbs)
Net weight - t.I. Version
395 kg (870 lbs)
US TPH
Universal spacer for TPH arm to be used with optional adapter kit UWA24, UMA and CRA;
UWA 24
Adapters to increase the turntable clamping capacity (to be used in combination with US TPH);
UMA
Universal motorcycle adapters (to be used in combination with US TPH);
CRA
Adapters for convex rims (to be used in combination with US TPH);
PLS 2
Pneumatic wheel lift complete with roller rest.
