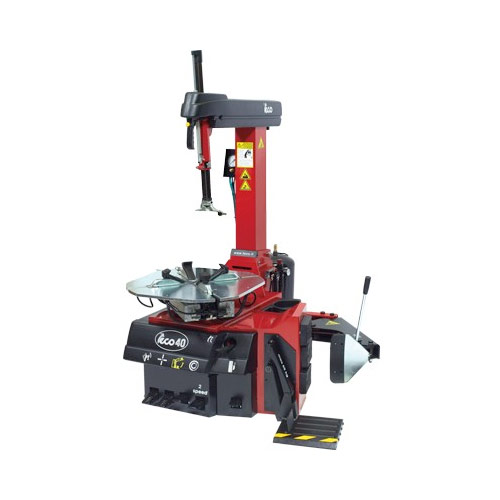

Teco 40ti Auto Tyre Changer

The super-automatic tyre changer TECO 40, new in its innovative and ergonomic design, has been specifically conceived for industry professionals and it is suitable to handle oversized and heavy car and light commercial vehicle wheels from 11" to 27" without adapters and adjustments. His high robustness and reliability, achieved thanks many innovative technical solutions (steel made rotating union, pneumatic control of the working arm, patented bead breaker arm and integrated head quick change device, triple regulation system to take off clearances, reinforced vertical post, horizontal arm double locking system, double acting bead breaker cylinder, extractable pedal unit and special clamping system geometry), the reduced height from ground and the angled bead breaker side make this machine ideal to operate on particularly tough or low profile tyres (i.e. run flat). Standard supplied in t.i. version with a 2-speed self-centering turntable, TECO 40 is also equipped with plastic protections for all the elements which could cause damages to the rim and with a supplementary mounting tool to handle projecting spoke rims. Also available in USA version with Moto inverter.

Universal pneumatic patented device ideal to handle particularly tough or low profiled tyres such as Run-Flat tyres. PLEASE NOTE: This video is a demonstration of the UPS and BPS attachment being used on a Teco 37.

Description

The super-automatic tyre changer TECO 40, new in its innovative and ergonomic design, has been specifically conceived for industry professionals and it is suitable to handle oversized and heavy car and light commercial vehicle wheels from 11″ to 27″ without adapters and adjustments. His high robustness and reliability, achieved thanks many innovative technical solutions (steel made rotating union, pneumatic control of the working arm, patented bead breaker arm and integrated head quick change device, triple regulation system to take off clearances, reinforced vertical post, horizontal arm double locking system, double acting bead breaker cylinder, extractable pedal unit and special clamping system geometry), the reduced height from ground and the angled bead breaker side make this machine ideal to operate on particularly tough or low profile tyres (i.e. run flat). Standard supplied in t.i. version with a 2-speed self-centering turntable, TECO 40 is also equipped with plastic protections for all the elements which could cause damages to the rim and with a supplementary mounting tool to handle projecting spoke rims. Also available in USA version with Moto inverter.

Universal pneumatic patented device ideal to handle particularly tough or low profiled tyres such as Run-Flat tyres. PLEASE NOTE: This video is a demonstration of the UPS and BPS attachment being used on a Teco 37.

Additional information

Vehicle
Condition

Clamping capacity
11"-27"
External clamping
11"-24"
Internal clamping
14"-27"
Max wheel diameter
1110 mm (44")
Max wheel width
405 mm (16")
Bead breaker cylinder force
2900 kgf (6395 lbf)
Working pressure
8-10 bar (116-145 psi)
3-phase electric motor
0,8-1,1 kw (1,1-1,5 hp)
1-phase electric motor
0,75 kw (1,0 hp)
Noise level
< 70 ± 3 db(a)
Net weight - t.I. Version
335 kg (740 lbs)
UPH A28
Patented pneumatic device which helps the operator to handle particularly tough or low profile tyres;
BPS
Second auxiliary pressor for low profile tyres to be assembled on UPH;
IPL
Pneumatic wheel lift complete with roller rest;
KIT PO
Tool tray kit;
UWA 24
Adapters to increase the turntable clamping capacity;
KIT UPA
Plastic tool for alloy rims.
