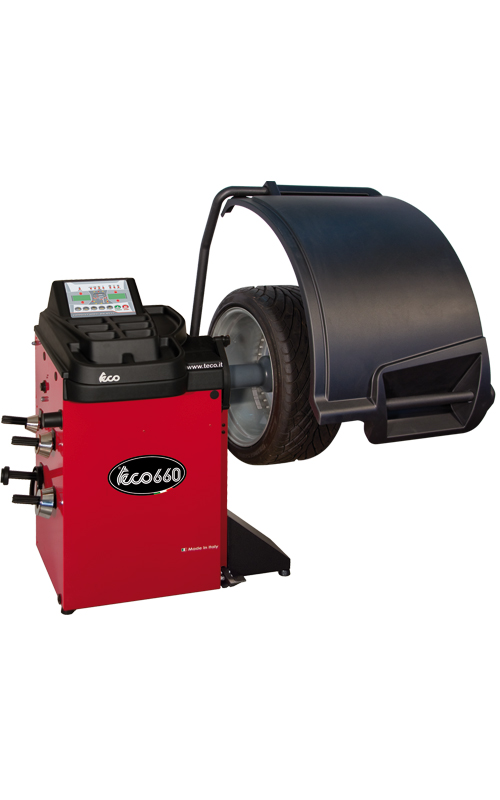

Teco 660 Electronic Wheel Balancer

Electronic wheel balancer for car, motorcycle and light commercial vehicle wheels having max weight of 75 Kg with machine installed on floor and max rim diameter measurable with the digital internal gauge of 28". Ideal to be used in professional repair shops, the machine is equipped with motorized balancing cycle to be activated lowering down the wheel guard and automatic entry system of distance and rim diameter spin parameters (manual for wheel width). Having a 40 mm shaft diameter and increased distance between machine body and wheel support flange, ideal to handle Racing wheels, it is supplied complete with a wide range of software programs to handle the most up-to-dated wheels on the market:
  • 7 ALU programs dedicated to alloy rims;
  • 2 motorcycle balancing programs (dynamic and ALU)
  • "Opt" program, to identify the best coupling between rim and tyre thus reducing the overall running noise levels
  • "Shift plane", "Hidden plane" and "Bike wheel split" programs for alloy rims.
TECO 660 is standard supplied with a set of 3 cones (diameter 40-111 mm), quick release wing nut, pliers and rim calliper.

Description

Electronic wheel balancer for car, motorcycle and light commercial vehicle wheels having max weight of 75 Kg with machine installed on floor and max rim diameter measurable with the digital internal gauge of 28″. Ideal to be used in professional repair shops, the machine is equipped with motorized balancing cycle to be activated lowering down the wheel guard and automatic entry system of distance and rim diameter spin parameters (manual for wheel width).

Having a 40 mm shaft diameter and increased distance between machine body and wheel support flange, ideal to handle Racing wheels, it is supplied complete with a wide range of software programs to handle the most up-to-dated wheels on the market:

  • 7 ALU programs dedicated to alloy rims;
  • 2 motorcycle balancing programs (dynamic and ALU)
  • “Opt” program, to identify the best coupling between rim and tyre thus reducing the overall running noise levels
  • “Shift plane”, “Hidden plane” and “Bike wheel split” programs for alloy rims.

TECO 660 is standard supplied with a set of 3 cones (diameter 40-111 mm), quick release wing nut, pliers and rim calliper.

Additional information

Condition

Max measurable rim diameter
28" Manually set to 35"
Rim width
1,5"-20"
Balancing speed
90-130 rpm
Balancing precision
± 1 gr (± 0,05 oz)
Cycle time
7 sec
Shaft diameter
40 mm (1,6")
Max wheel weight
75 kg (165 lbs)
Power supply
110/240v 1ph
Distance machine-rim
275mm (11")
Net weight
73 kg (160 lbs)
KIT P66
Stabilization foot to avoid installing the machine on floor (max wheel weight with foot 50 Kg);
KIT F66
Shaft locking device controlled by pedal;
TE66
External gauge for automatic insertion of wheel width parameter;
C 119
Cone for wheel locking (diameter 101-119 mm);
C 137
Cone for wheel locking (diameter 95-137 mm);
FRU
Universal adapter for all types of wheels complete with stud gauge;
G40/VL40
Large cone for vans (diameter 120-174 mm).
