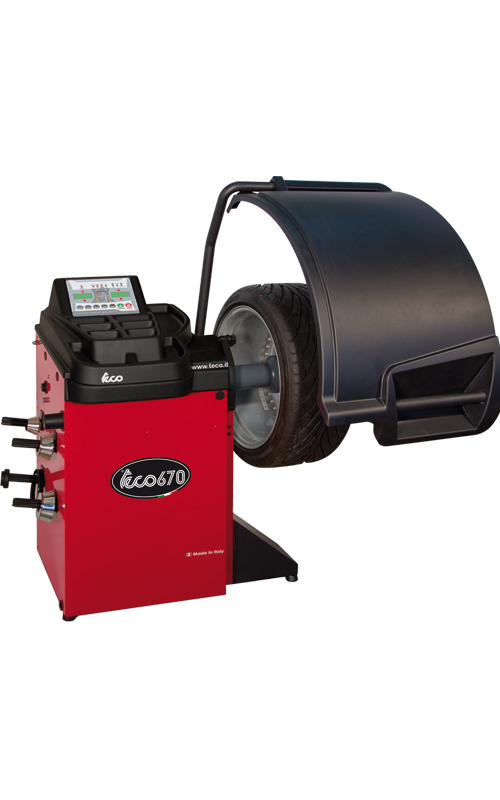

TECO 670 & 670L Electronic Wheel Balancer

ELECTRONIC WHEEL BALANCER with display and electronic shaft locking system, conceived for car, van and using specific optional accessories, motorcycle wheels having maximum weight of 75 Kg, with machine installed on floor. Teco 670 is equipped with new internal digital gauge for automatic data entry of distance and rim diameter with automatic selection of balancing programs and automatic search of the balancing position. The machine is supplied complete with motorised balancing cycle, to be activated lowering down the wheel guard, and with 7 ALU programs dedicated to alloy rims including 2 ALUP(precision programs) available also without the wheel cover and in version L (LASER AND LIGHT) with laser line system and rim illuminator. VERSION COMPLETE WITH LASER LINE SYSTEM AND RIM ILLUMINATOR (factory installed) IF ALU PROGRAMS ARE SELECTED THE LASER LINE ASSIST THE OPERATOR DURING ADHESIVE WEIGHT POSITIONING AT 6 O' CLOCK

Description

ELECTRONIC WHEEL BALANCER with display and electronic shaft locking system, conceived for car, van and using specific optional accessories, motorcycle wheels having maximum weight of 75 Kg, with machine installed on floor.

Teco 670 is equipped with new internal digital gauge for automatic data entry of distance and rim diameter with automatic selection of balancing programs and automatic search of the balancing position.

The machine is supplied complete with motorised balancing cycle, to be activated lowering down the wheel guard, and with 7 ALU programs dedicated to alloy rims including 2 ALUP(precision programs) available also without the wheel cover and in version L (LASER AND LIGHT) with laser line system and rim illuminator.

VERSION COMPLETE WITH LASER LINE SYSTEM AND RIM ILLUMINATOR (factory installed) IF ALU PROGRAMS ARE SELECTED THE LASER LINE ASSIST THE OPERATOR DURING ADHESIVE WEIGHT POSITIONING AT 6 O’ CLOCK

Additional information

Condition

Vehicle

Maximum Rim Diameter
28" Manually settable at 35"
Rim Width
1.5"- 20"
Max Wheel Weight
75 Kg (165 lbs)
Shaft Diameter
40mm (1.6")
Distance machine-rim
275mm (11")
Balancing speed
90 - 130 rpm
Balancing precision
1gr (0,05oz)
Cycle time
7 secs
Power Supply
100-115v or 200- 230v
Net Weight
75 Kg (165 lbe
