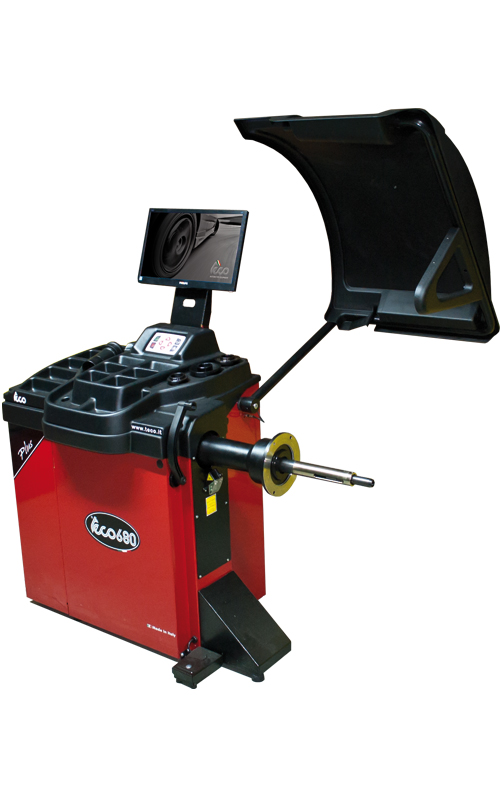

Teco 680 plus PL Electronic Wheel Balancer

New electronic wheel balancer with LCD monitor (optional) and pneumatic wheel locking system PL  for car, and van and using specific optional accessories, motorcycle wheels having max weight of 75kg (165 lbs). Teco 680 PLUS PL is standard supplied in LASER & LIGHT configuration with laser line system and rim illuminator, equipped with extended cabinet and weight tray cover, new internal digital gauge for automatic data entry of distance and rim diameter with automatic selection of balancing programmes. Electronic shaft locking system and automatic search of the balancing position. Having a 40mm shaft diameter, TECO680 offers a wide range of software programs to handle the most up to date wheels on the market and performs the following technical features:
  • Belt spin system and high performance braking device.
  • "shift plane" Hidden plane" and Bike wheel split programs for alloy rims.
  • Increased distance between machine body and wheel support flange, ideal for Racing wheel application;
  • 7 ALU Programs dedicated to alloy rims;
  • "Opt" program to identify the best coupling between rim and tyre, thus reducing the overall running noise levels;
  • Multi operator program which allows to store data for three different balancing operations;
  • Customization of display, language and key functions.
PNEUMATIC WHEEL CLAMPING SYSTEM with extended stroke. Controlled by an on-purpose pedal, it allows a reduction in cycle time.

Description

New electronic wheel balancer with LCD monitor (optional) and pneumatic wheel locking system PL  for car, and van and using specific optional accessories, motorcycle wheels having max weight of 75kg (165 lbs).

Teco 680 PLUS PL is standard supplied in LASER & LIGHT configuration with laser line system and rim illuminator, equipped with extended cabinet and weight tray cover, new internal digital gauge for automatic data entry of distance and rim diameter with automatic selection of balancing programmes. Electronic shaft locking system and automatic search of the balancing position.

Having a 40mm shaft diameter, TECO680 offers a wide range of software programs to handle the most up to date wheels on the market and performs the following technical features:

  • Belt spin system and high performance braking device.
  • “shift plane” Hidden plane” and Bike wheel split programs for alloy rims.
  • Increased distance between machine body and wheel support flange, ideal for Racing wheel application;
  • 7 ALU Programs dedicated to alloy rims;
  • “Opt” program to identify the best coupling between rim and tyre, thus reducing the overall running noise levels;
  • Multi operator program which allows to store data for three different balancing operations;
  • Customization of display, language and key functions.

PNEUMATIC WHEEL CLAMPING SYSTEM with extended stroke. Controlled by an on-purpose pedal, it allows a reduction in cycle time.

Additional information

Condition

Max measurable rim diameter
28" Manually set to 35"
Rim width
1.5" - 20"
Balancing speed
75 - 98 rpm
Balancing precision
+/- 1gr (+/- 0.05oz)
Cycle time
7 sec
Shaft diameter
40mm (1.6")
Max wheel weight
75kg (165lbs)
Power supply
110/240v 1ph
Working Pressure
7-10 Bar (100-145 psi)
Net weight
98 kg (216 lbs)
C 119
Cone for wheel locking (diameter 101 -119mm);
C137
Cone for wheel locking (diameter 95 - 137mm);
FRU
Universal adapter for all types of wheels complete with stud guage;
G40/VL40
Large cone for Vans (diameter 120 - 174mm);
WEIGHT RIGHT
Optional software to minimise machine correction weight demand.
